This Notebook demonstrates comparing different levels of compression on several test variables in the CESM-LENS1 dataset (http://www.cesm.ucar.edu/projects/community-projects/LENS/data-sets.html). In doing so, we will start a DASK client from Jupyter.

Setup

Before using this notebook, we recommend familiarity with the TutorialNotebook and the LargeDataGladeNotebook. This notebook is meant to be run on NCAR’s JupyterHub (https://jupyterhub.hpc.ucar.edu). The subset of CESM-LENS1 data on glade is located in /glade/p/cisl/asap/abaker/compression_samples/cam-lens.

When you launch your NCAR JupyterHub session, you will need to indicate a machine (Cheyenne or Casper) and then you will need your charge account. You can then launch the session and navigate to this notebook.

NCAR’s JupyterHub documentation: https://www2.cisl.ucar.edu/resources/jupyterhub-ncar

You need to run your notebook with the “cmip6-201910” kernel (choose from the dropdown in the upper left.)

When you launch your NCAR JupyterHub session, you will need to indicate a machine and then you will need your charge account. You can then launch the session and navigate to this notebook.

NCAR’s JupyterHub documentation: https://www2.cisl.ucar.edu/resources/jupyterhub-ncar

[1]:

# Make sure you are using the cmpi6-2019.10 kernel

# Add ldcpy root to system path (MODIFY FOR YOUR LDCPY CODE LOCATION)
import sys

sys.path.insert(0, '/glade/u/home/apinard/newldcpy/ldcpy')
import ldcpy

# Display output of plots directly in Notebook
%matplotlib inline
# Automatically reload module if it is editted
%reload_ext autoreload
%autoreload 2

# silence warnings
import warnings

warnings.filterwarnings("ignore")

Start DASK…

[2]:

# start the dask scheduler

# Note: This notebook should run on Cheyenne for now, running on casper will work for
# the most part but trying to plot the LHFLX variable will result in a timeout,
# presumably due to the large file sizes for the variable.

# for Cheyenne
from dask_jobqueue import PBSCluster

cluster = PBSCluster(
    queue="regular",
    walltime="02:00:00",
    project="NIOW0001",
    memory="109GB",
    resource_spec="select=1:ncpus=9:mem=109GB",
    cores=36,
    processes=9,
)


# scale as needed
cluster.adapt(minimum_jobs=1, maximum_jobs=30)
cluster

Connect to the client…

[3]:

from dask.distributed import Client

# Connect client to the remote dask workers
client = Client(cluster)
client

[3]:

Client

Cluster

  • Workers: 0
  • Cores: 0
  • Memory: 0 B

Sample Data

In the glade directory mentionned above (/glade/p/cisl/asap/abaker/compression_samples/cam-lens), we have an “orig” directory with the original (uncompressed) version of each sample variable: Q, FLNS, TREFHT, TMQ, PS, U, PRECT, LHFLX, CCN3, TS, and CLOUD. Then there is a directory for each sample variable with a variety of compressed varients.

Note that each test variables has a two timeseries slices: 1920-2005 and 2006-2080. The range of data is indicated in the filename along with whether the data is “daily” or “monthly” timeslices.

Variables U, CLOUD, and Qare 3D, and the rest are 2D.

[4]:

# list  directory contents
import os

os.listdir("/glade/p/cisl/asap/abaker/compression_samples/cam-lens")

[4]:

['README.txt',
 'Q',
 'FLNS',
 'TREFHT',
 'TMQ',
 'PS',
 'U',
 'PRECT',
 'LHFLX',
 'CCN3',
 'orig',
 'CLOUD',
 'TS']

[5]:

# List the original data files
os.listdir("/glade/p/cisl/asap/abaker/compression_samples/cam-lens/orig")

[5]:

['CLOUD.monthly.200601-208012.nc',
 'LHFLX.daily.20060101-20801231.nc',
 'TREFHT.monthly.192001-200512.nc',
 'U.monthly.192001-200512.nc',
 'PRECT.daily.20060101-20801231.nc',
 'CLOUD.monthly.192001-200512.nc',
 'TMQ.monthly.192001-200512.nc',
 'CCN3.monthly.200601-208012.nc',
 'PS.monthly.192001-200512.nc',
 'CCN3.monthly.192001-200512.nc',
 'PRECT.daily.19200101-20051231.nc',
 'TS.daily.20060101-20801231.nc',
 'PS.monthly.200601-208012.nc',
 'TS.daily.19200101-20051231.nc',
 'Q.monthly.192001-200512.nc',
 'Q.monthly.200601-208012.nc',
 'TMQ.monthly.200601-208012.nc',
 'U.monthly.200601-208012.nc',
 'TREFHT.monthly.200601-208012.nc',
 'FLNS.monthly.192001-200512.nc',
 'FLNS.monthly.200601-208012.nc',
 'LHFLX.daily.19200101-20051231.nc']

[6]:

# List the compressed data files for TMQ
os.listdir("/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ")

[6]:

['zfp.p22.TMQ.monthly.192001-200512.nc',
 'zfp.p18.TMQ.monthly.200601-208012.nc',
 'zfp.p22.TMQ.monthly.200601-208012.nc',
 'zfp.p20.TMQ.monthly.192001-200512.nc',
 'zfp.p12.TMQ.monthly.200601-208012.nc',
 'zfp.p8.TMQ.monthly.192001-200512.nc',
 'zfp.p18.TMQ.monthly.192001-200512.nc',
 'zfp.p12.TMQ.monthly.192001-200512.nc',
 'zfp.p8.TMQ.monthly.200601-208012.nc',
 'zfp.p10.TMQ.monthly.192001-200512.nc',
 'fpzip16.TMQ.monthly.200601-208012.nc',
 'zfp.p16.TMQ.monthly.192001-200512.nc',
 'zfp.p20.TMQ.monthly.200601-208012.nc',
 'zfp.p10.TMQ.monthly.200601-208012.nc',
 'zfp.p14.TMQ.monthly.200601-208012.nc',
 'zfp.p16.TMQ.monthly.200601-208012.nc',
 'zfp.p14.TMQ.monthly.192001-200512.nc',
 'fpzip16.TMQ.monthly.192001-200512.nc']

Make a collection with some of the TMQ data to compare. We’ll look at the 2006-2080 data. Make sure to use “useful” labels. You can’t mix the 2006-2080 and 1920-2005 data in the same collection as they have different numbers of time slices.

The “fpzip” version is from the blind evaluation. For the “zfp” versions, the p indicates the precision parameter (the higher the number after p, the more accurate).

[7]:

col_tmq = ldcpy.open_datasets(
    "cam-fv",
    ["TMQ"],
    [
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/orig/TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/fpzip16.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p8.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p10.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p12.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p14.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p16.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p18.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p20.TMQ.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TMQ/zfp.p22.TMQ.monthly.200601-208012.nc",
    ],
    [
        "orig",
        "fpzip16",
        "zfp-p8",
        "zfp-p10",
        "zfp-p12",
        "zfp-p14",
        "zfp-p16",
        "zfp-p18",
        "zfp-p20",
        "zfp-p22",
    ],
    chunks={"time": 700},
)
col_tmq

dataset size in GB 2.00


[7]:

<xarray.Dataset>
Dimensions:     (collection: 10, lat: 192, lon: 288, time: 900)
Coordinates:
  * lat         (lat) float64 -90.0 -89.06 -88.12 -87.17 ... 88.12 89.06 90.0
  * lon         (lon) float64 0.0 1.25 2.5 3.75 5.0 ... 355.0 356.2 357.5 358.8
  * time        (time) object 2006-02-01 00:00:00 ... 2081-01-01 00:00:00
    cell_area   (lat, collection, lon) float64 dask.array<chunksize=(192, 1, 288), meta=np.ndarray>
  * collection  (collection) <U7 'orig' 'fpzip16' ... 'zfp-p20' 'zfp-p22'
Data variables:
    TMQ         (collection, time, lat, lon) float32 dask.array<chunksize=(1, 700, 192, 288), meta=np.ndarray>
Attributes:
    Conventions:      CF-1.0
    source:           CAM
    case:             b.e11.BRCP85C5CNBDRD.f09_g16.031
    title:            UNSET
    logname:          mickelso
    host:             ys1023
    Version:          $Name$
    revision_Id:      $Id$
    initial_file:     b.e11.B20TRC5CNBDRD.f09_g16.031.cam.i.2006-01-01-00000.nc
    topography_file:  /glade/p/cesmdata/cseg/inputdata/atm/cam/topo/USGS-gtop...
    history:          Tue Nov  3 14:06:43 2020: ncks -L 5 TMQ.monthly.200601-...
    NCO:              netCDF Operators version 4.7.9 (Homepage = http://nco.s...
    cell_measures:    area: cell_area
    data_type:        cam-fv
[8]:

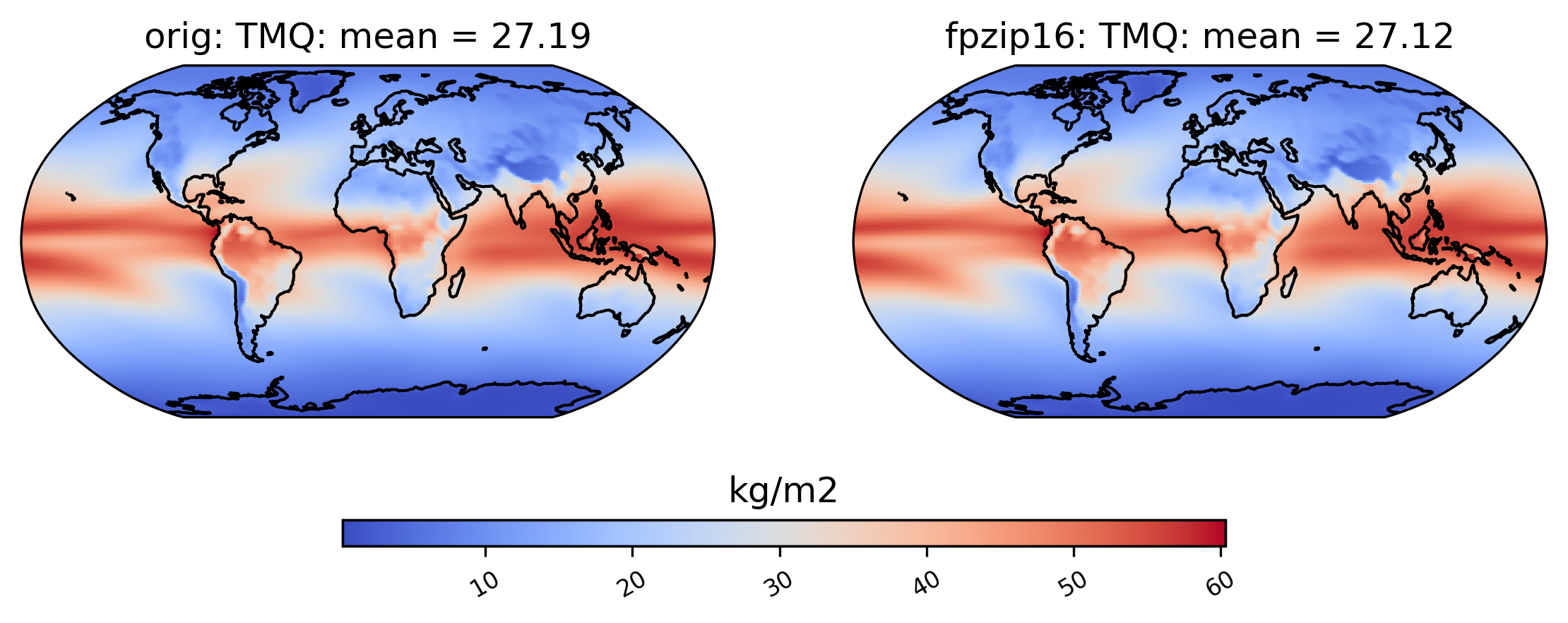

# first compare the mean TMQ values in col_tmq orig and fpzip datasets (which is in the released lens data)
ldcpy.plot(col_tmq, "TMQ", sets=["orig", "fpzip16"], calc="mean")
../_images/notebooks_CompressionSamples_12_0.png

Let’s look at some statistics for the time slice= 100 of the data (the data has 900 time slices)

[9]:

ldcpy.compare_stats(col_tmq.isel(time=100), "TMQ", ["orig", "fpzip16"])
Comparison:
orig fpzip16
mean 18.83 18.777
variance 220.84 219.64
standard deviation 14.861 14.82
min value 56.345 56.25
max value 0.16246 0.16211
probability positive 1 1
number of zeros 0 0

Difference calcs:
fpzip16
max abs diff 0.24997
min abs diff 0
mean abs diff 0.052669
mean squared diff 0.002774
root mean squared diff 0.077692
normalized root mean squared diff 0.0013828
normalized max pointwise error 0.0044493
pearson correlation coefficient 1
ks p-value 0.0067025
spatial relative error(% > 0.0001) 98.168
max spatial relative error 0.0077457
Data SSIM 0.99043
[10]:

# The compression ratio (CR)for fpzip was ~3.4x better than lossless
# zfp - p10 has a similar CR - look at it's stats and also zfp-p12 (CR ~2.5x)
ldcpy.compare_stats(col_tmq.isel(time=100), "TMQ", ["orig", "zfp-p10", "zfp-p12"])
Comparison:
orig zfp-p10 zfp-p12
mean 18.83 18.848 18.834
variance 220.84 221.26 220.93
standard deviation 14.861 14.875 14.864
min value 56.345 56.5 56.281
max value 0.16246 0.16162 0.16248
probability positive 1 1 1
number of zeros 0 0 0

Difference calcs:
zfp-p10 zfp-p12
max abs diff 0.53075 0.13838
min abs diff 2.5332e-07 0
mean abs diff 0.054665 0.01471
mean squared diff 0.00033242 1.998e-05
root mean squared diff 0.08664 0.023306
normalized root mean squared diff 0.0015421 0.00041483
normalized max pointwise error 0.0082268 0.0020934
pearson correlation coefficient 0.99998 1
ks p-value 0.13637 0.36025
spatial relative error(% > 0.0001) 97.79 91.296
max spatial relative error 0.030925 0.0046611
Data SSIM 0.9872 0.99688

Let’s look at something more interesting…

[11]:

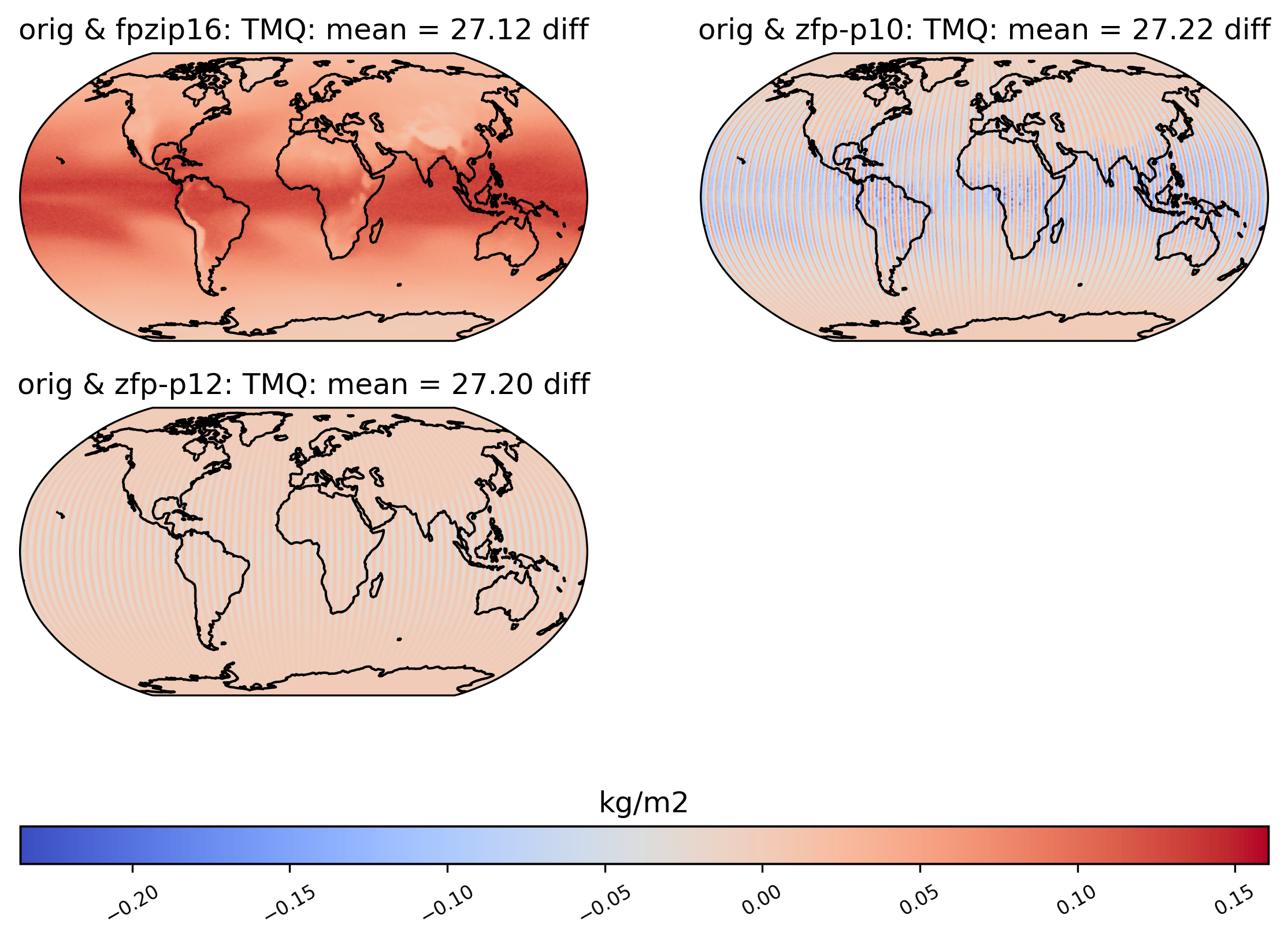

# diff between mean TS values in col_ds "orig" and "zfpA1.0" datasets
ldcpy.plot(
    col_tmq,
    "TMQ",
    sets=["orig", "fpzip16", "zfp-p10", "zfp-p12"],
    calc="mean",
    calc_type="diff",
)
../_images/notebooks_CompressionSamples_17_0.png
[12]:

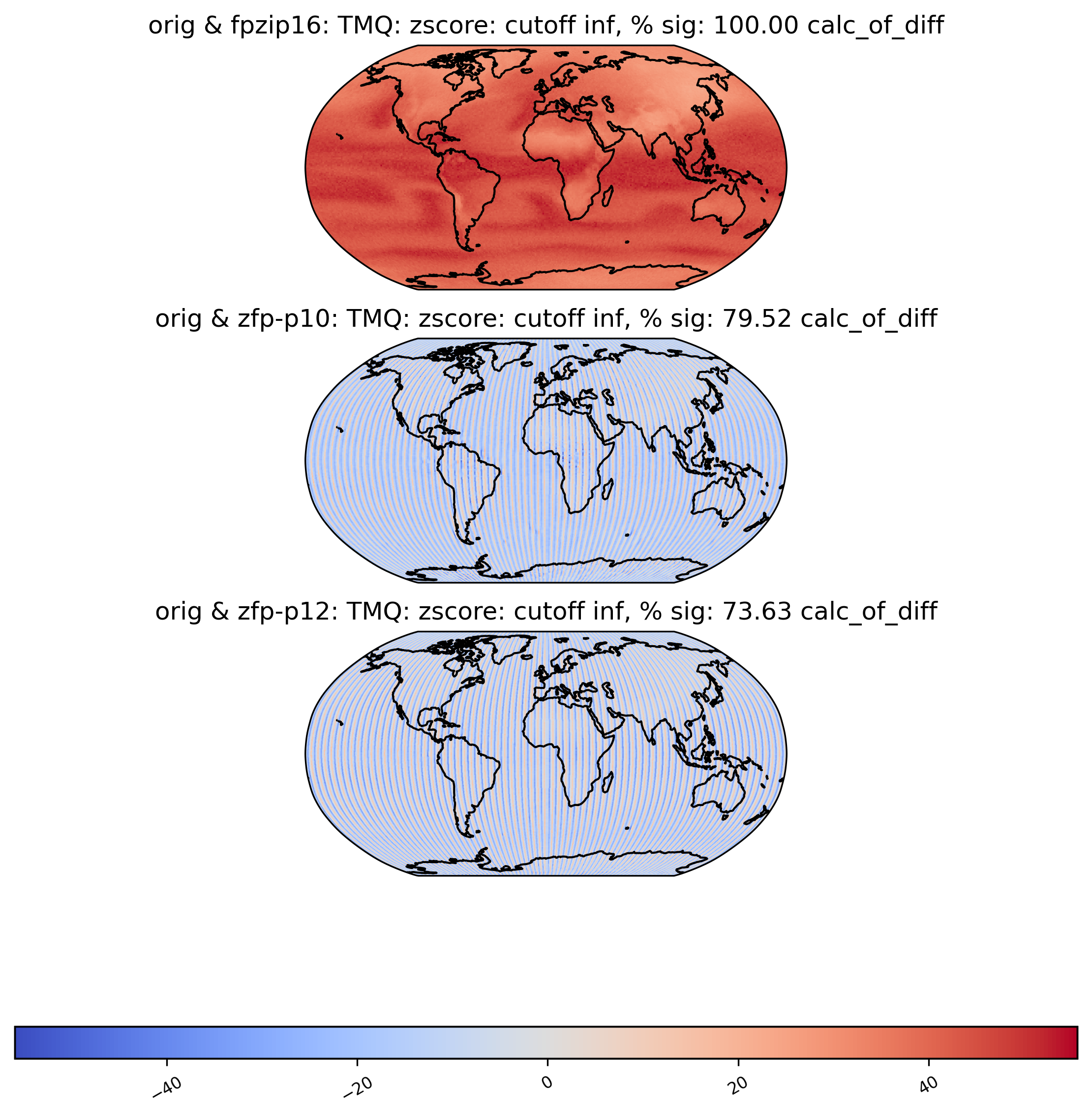

# plot of z-score under null hypothesis that orig value= compressed value
ldcpy.plot(
    col_tmq,
    "TMQ",
    sets=["orig", "fpzip16", "zfp-p10", "zfp-p12"],
    calc="zscore",
    calc_type="calc_of_diff",
)
../_images/notebooks_CompressionSamples_18_0.png
[13]:

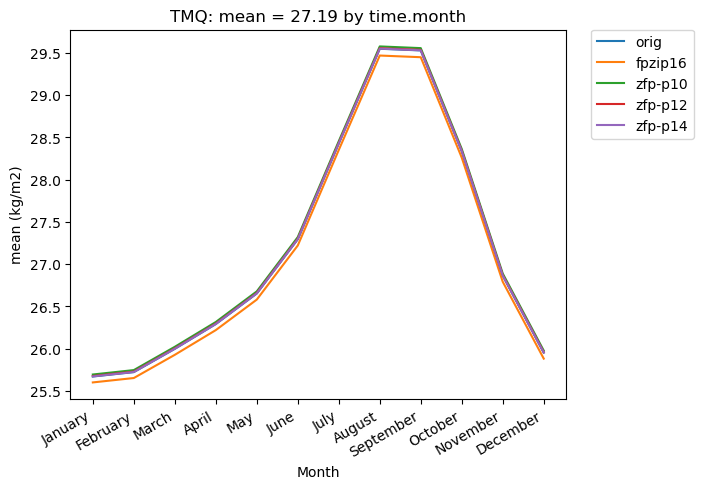

# Time-series plot of TMQ mean in the original and lossy datasets
ldcpy.plot(
    col_tmq,
    "TMQ",
    sets=["orig", "fpzip16", "zfp-p10", "zfp-p12", "zfp-p14"],
    calc="mean",
    plot_type="time_series",
    group_by="time.month",
)
../_images/notebooks_CompressionSamples_19_0.png

Now we look at other variables below

[14]:

# List the compressed data files for TREFHT
os.listdir("/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT")

[14]:

['zfp.p22.TREFHT.monthly.200601-208012.nc',
 'zfp.p16.TREFHT.monthly.200601-208012.nc',
 'zfp.p14.TREFHT.monthly.200601-208012.nc',
 'zfp.p16.TREFHT.monthly.192001-200512.nc',
 'zfp.p10.TREFHT.monthly.192001-200512.nc',
 'zfp.p14.TREFHT.monthly.192001-200512.nc',
 'zfp.p20.TREFHT.monthly.200601-208012.nc',
 'zfp.p10.TREFHT.monthly.200601-208012.nc',
 'zfp.p18.TREFHT.monthly.192001-200512.nc',
 'zfp.p8.TREFHT.monthly.192001-200512.nc',
 'zfp.p22.TREFHT.monthly.192001-200512.nc',
 'fpzip20.TREFHT.monthly.200601-208012.nc',
 'zfp.p12.TREFHT.monthly.200601-208012.nc',
 'zfp.p20.TREFHT.monthly.192001-200512.nc',
 'zfp.p12.TREFHT.monthly.192001-200512.nc',
 'zfp.p18.TREFHT.monthly.200601-208012.nc',
 'fpzip20.TREFHT.monthly.192001-200512.nc',
 'zfp.p8.TREFHT.monthly.200601-208012.nc']

[15]:

col_trefht = ldcpy.open_datasets(
    "cam-fv",
    ["TREFHT"],
    [
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/orig/TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/fpzip20.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p8.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p10.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p12.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p14.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p16.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p18.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p20.TREFHT.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/TREFHT/zfp.p22.TREFHT.monthly.200601-208012.nc",
    ],
    [
        "orig",
        "fpzip20",
        "zfp-p8",
        "zfp-p10",
        "zfp-p12",
        "zfp-p14",
        "zfp-p16",
        "zfp-p18",
        "zfp-p20",
        "zfp-p22",
    ],
    chunks={"time": 700},
)
col_trefht

dataset size in GB 2.00


[15]:

<xarray.Dataset>
Dimensions:     (collection: 10, lat: 192, lon: 288, time: 900)
Coordinates:
  * lat         (lat) float64 -90.0 -89.06 -88.12 -87.17 ... 88.12 89.06 90.0
  * lon         (lon) float64 0.0 1.25 2.5 3.75 5.0 ... 355.0 356.2 357.5 358.8
  * time        (time) object 2006-02-01 00:00:00 ... 2081-01-01 00:00:00
    cell_area   (lat, collection, lon) float64 dask.array<chunksize=(192, 1, 288), meta=np.ndarray>
  * collection  (collection) <U7 'orig' 'fpzip20' ... 'zfp-p20' 'zfp-p22'
Data variables:
    TREFHT      (collection, time, lat, lon) float32 dask.array<chunksize=(1, 700, 192, 288), meta=np.ndarray>
Attributes:
    Conventions:      CF-1.0
    source:           CAM
    case:             b.e11.BRCP85C5CNBDRD.f09_g16.031
    title:            UNSET
    logname:          mickelso
    host:             ys1023
    Version:          $Name$
    revision_Id:      $Id$
    initial_file:     b.e11.B20TRC5CNBDRD.f09_g16.031.cam.i.2006-01-01-00000.nc
    topography_file:  /glade/p/cesmdata/cseg/inputdata/atm/cam/topo/USGS-gtop...
    history:          Tue Nov  3 14:11:24 2020: ncks -L 5 TREFHT.monthly.2006...
    NCO:              netCDF Operators version 4.7.9 (Homepage = http://nco.s...
    cell_measures:    area: cell_area
    data_type:        cam-fv
[16]:

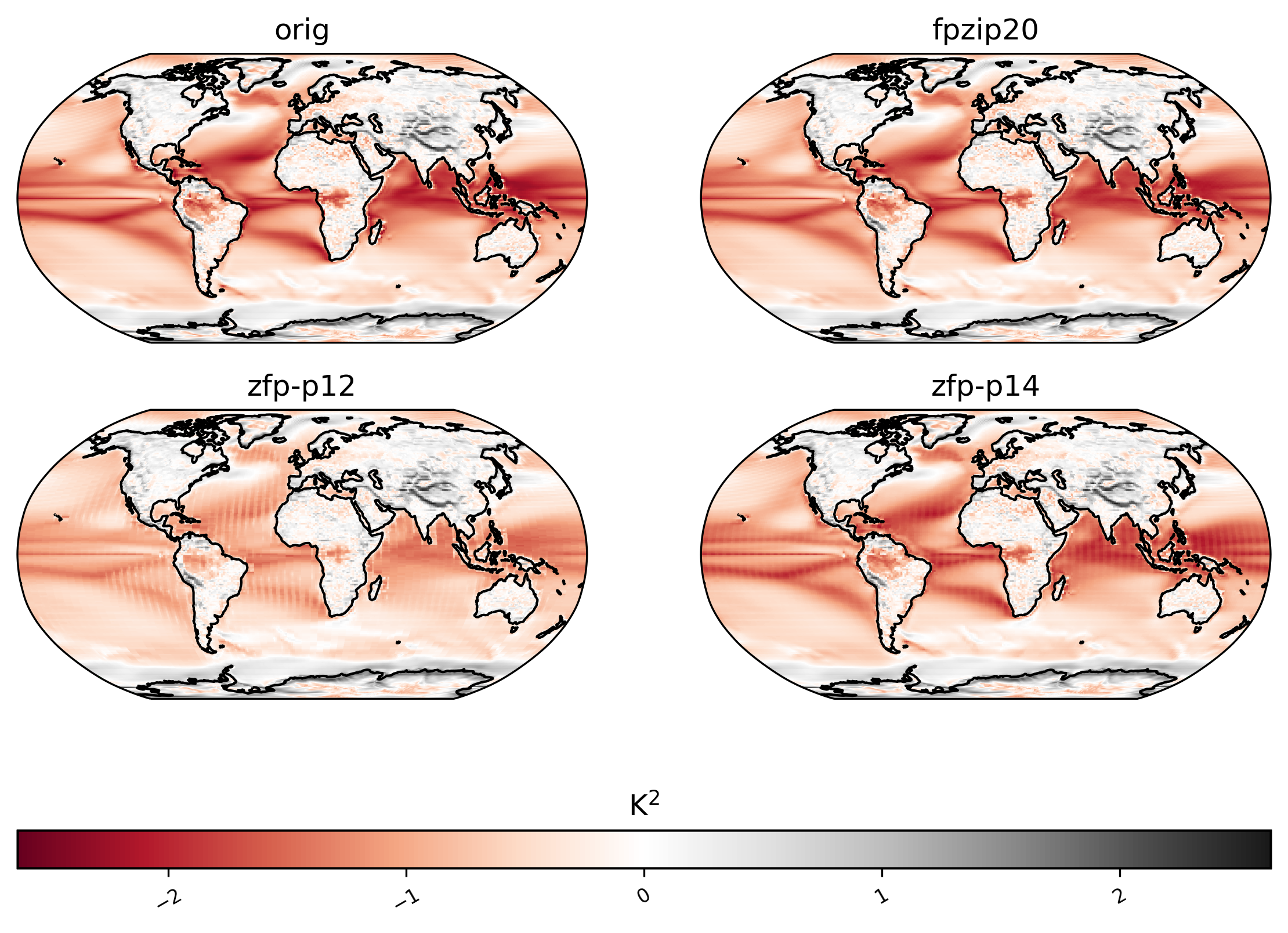

# Let's look and compare the north south contrast variances
ldcpy.plot(
    col_trefht,
    "TREFHT",
    sets=["orig", "fpzip20", "zfp-p12", "zfp-p14"],
    calc="ns_con_var",
    color="RdGy",
    calc_type="raw",
    transform="log",
    axes_symmetric=True,
    short_title=True,
)
../_images/notebooks_CompressionSamples_23_0.png
[17]:

# List the compressed data files for LHFLX
os.listdir("/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX")

[17]:

['zfp.p14.LHFLX.daily.19200101-20051231.nc',
 'zfp.p12.LHFLX.daily.19200101-20051231.nc',
 'zfp.p18.LHFLX.daily.20060101-20801231.nc',
 'zfp.p12.LHFLX.daily.20060101-20801231.nc',
 'zfp.p16.LHFLX.daily.20060101-20801231.nc',
 'zfp.p22.LHFLX.daily.20060101-20801231.nc',
 'fpzip16.LHFLX.daily.19200101-20051231.nc',
 'zfp.p10.LHFLX.daily.19200101-20051231.nc',
 'fpzip16.LHFLX.daily.20060101-20801231.nc',
 'zfp.p8.LHFLX.daily.19200101-20051231.nc',
 'zfp.p8.LHFLX.daily.20060101-20801231.nc',
 'zfp.p20.LHFLX.daily.20060101-20801231.nc',
 'zfp.p14.LHFLX.daily.20060101-20801231.nc',
 'zfp.p10.LHFLX.daily.20060101-20801231.nc',
 'zfp.p16.LHFLX.daily.19200101-20051231.nc',
 'zfp.p22.LHFLX.daily.19200101-20051231.nc',
 'zfp.p18.LHFLX.daily.19200101-20051231.nc',
 'zfp.p20.LHFLX.daily.19200101-20051231.nc']

[18]:

col_lhflx = ldcpy.open_datasets(
    "cam-fv",
    ["LHFLX"],
    [
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/orig/LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/fpzip16.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p8.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p10.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p12.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p14.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p16.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p18.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p20.LHFLX.daily.20060101-20801231.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/LHFLX/zfp.p22.LHFLX.daily.20060101-20801231.nc",
    ],
    [
        "orig",
        "fpzip16",
        "zfp-p8",
        "zfp-p10",
        "zfp-p12",
        "zfp-p14",
        "zfp-p16",
        "zfp-p18",
        "zfp-p20",
        "zfp-p22",
    ],
    chunks={"time": 100},
)
col_lhflx

dataset size in GB 60.55


[18]:

<xarray.Dataset>
Dimensions:     (collection: 10, lat: 192, lon: 288, time: 27375)
Coordinates:
  * lat         (lat) float64 -90.0 -89.06 -88.12 -87.17 ... 88.12 89.06 90.0
  * lon         (lon) float64 0.0 1.25 2.5 3.75 5.0 ... 355.0 356.2 357.5 358.8
  * time        (time) object 2006-01-01 00:00:00 ... 2080-12-31 00:00:00
    cell_area   (lat, collection, lon) float64 dask.array<chunksize=(192, 1, 288), meta=np.ndarray>
  * collection  (collection) <U7 'orig' 'fpzip16' ... 'zfp-p20' 'zfp-p22'
Data variables:
    LHFLX       (collection, time, lat, lon) float32 dask.array<chunksize=(1, 100, 192, 288), meta=np.ndarray>
Attributes:
    Conventions:      CF-1.0
    source:           CAM
    case:             b.e11.BRCP85C5CNBDRD.f09_g16.031
    title:            UNSET
    logname:          mickelso
    host:             ys1023
    Version:          $Name$
    revision_Id:      $Id$
    initial_file:     b.e11.B20TRC5CNBDRD.f09_g16.031.cam.i.2006-01-01-00000.nc
    topography_file:  /glade/p/cesmdata/cseg/inputdata/atm/cam/topo/USGS-gtop...
    history:          Wed Nov 11 19:15:10 2020: ncks -L 5 LHFLX.daily.2006010...
    NCO:              netCDF Operators version 4.7.9 (Homepage = http://nco.s...
    cell_measures:    area: cell_area
    data_type:        cam-fv
[19]:

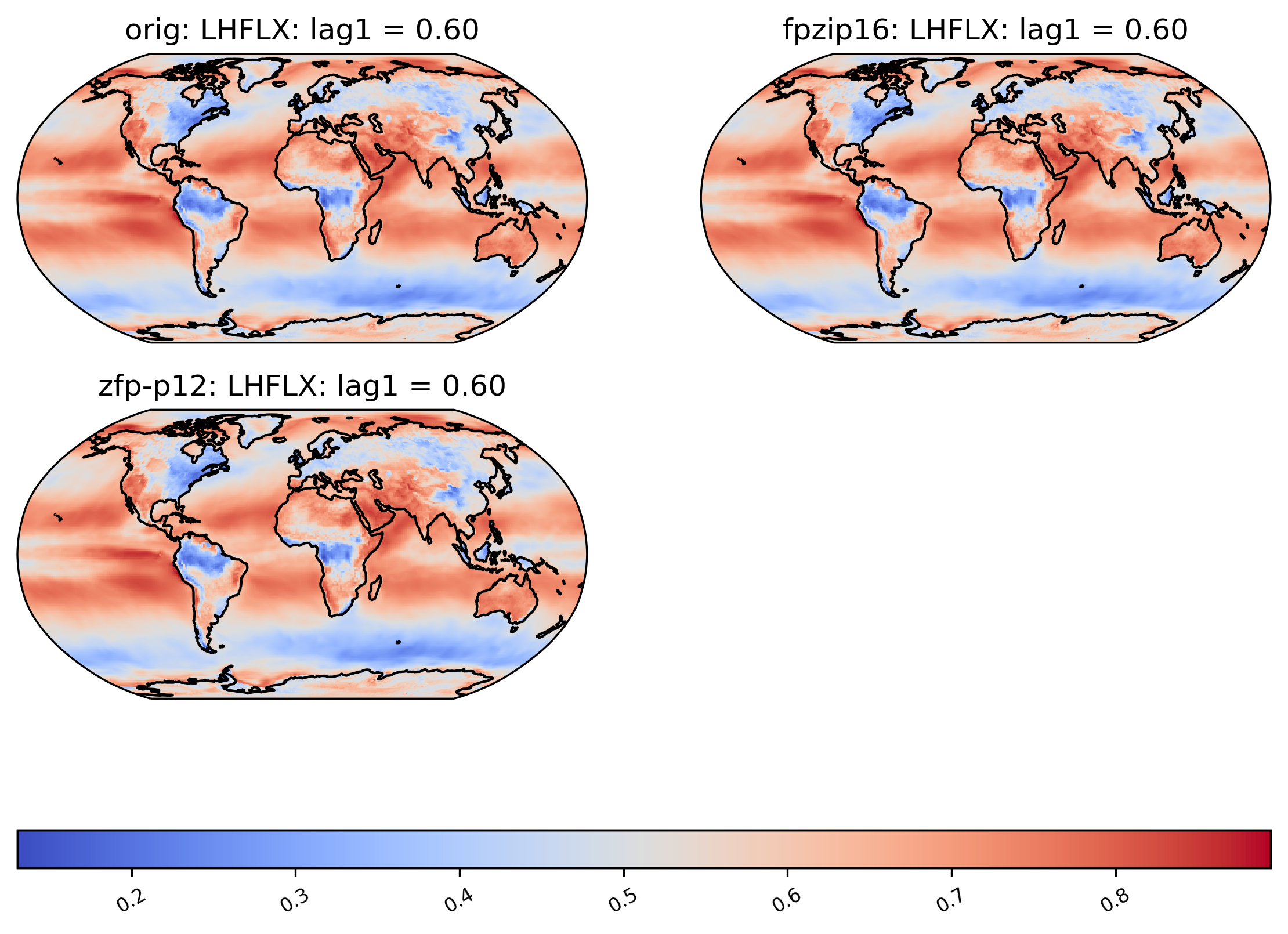

# plot of lag-1 correlation of LHFLX values for the first 10 years (NOTE: daily data takes longer)
ldcpy.plot(
    col_lhflx,
    "LHFLX",
    sets=["orig", "fpzip16", "zfp-p12"],
    calc="lag1",
    start=0,
    end=3650,
)
../_images/notebooks_CompressionSamples_26_0.png
[20]:

# List the compressed data files for Q
os.listdir("/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q")

[20]:

['zfp.p18.Q.monthly.192001-200512.nc',
 'zfp.p10.Q.monthly.200601-208012.nc',
 'zfp.p16.Q.monthly.200601-208012.nc',
 'zfp.p20.Q.monthly.200601-208012.nc',
 'zfp.p8.Q.monthly.200601-208012.nc',
 'zfp.p10.Q.monthly.192001-200512.nc',
 'zfp.p22.Q.monthly.200601-208012.nc',
 'fpzip20.Q.monthly.192001-200512.nc',
 'fpzip20.Q.monthly.200601-208012.nc',
 'zfp.p18.Q.monthly.200601-208012.nc',
 'zfp.p12.Q.monthly.200601-208012.nc',
 'zfp.p20.Q.monthly.192001-200512.nc',
 'zfp.p22.Q.monthly.192001-200512.nc',
 'zfp.p14.Q.monthly.200601-208012.nc',
 'zfp.p8.Q.monthly.192001-200512.nc',
 'zfp.p14.Q.monthly.192001-200512.nc',
 'zfp.p12.Q.monthly.192001-200512.nc',
 'zfp.p16.Q.monthly.192001-200512.nc']

[21]:

col_q = ldcpy.open_datasets(
    "cam-fv",
    ["Q"],
    [
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/orig/Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/fpzip20.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p8.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p10.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p12.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p14.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p16.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p18.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p20.Q.monthly.200601-208012.nc",
        "/glade/p/cisl/asap/abaker/compression_samples/cam-lens/Q/zfp.p22.Q.monthly.200601-208012.nc",
    ],
    [
        "orig",
        "fpzip20",
        "zfp-p8",
        "zfp-p10",
        "zfp-p12",
        "zfp-p14",
        "zfp-p16",
        "zfp-p18",
        "zfp-p20",
        "zfp-p22",
    ],
    chunks={"time": 100},
)
col_q

dataset size in GB 59.72


[21]:

<xarray.Dataset>
Dimensions:     (collection: 10, lat: 192, lev: 30, lon: 288, time: 900)
Coordinates:
  * lat         (lat) float64 -90.0 -89.06 -88.12 -87.17 ... 88.12 89.06 90.0
  * lev         (lev) float64 3.643 7.595 14.36 24.61 ... 957.5 976.3 992.6
  * lon         (lon) float64 0.0 1.25 2.5 3.75 5.0 ... 355.0 356.2 357.5 358.8
  * time        (time) object 2006-02-01 00:00:00 ... 2081-01-01 00:00:00
    cell_area   (lat, collection, lon) float64 dask.array<chunksize=(192, 1, 288), meta=np.ndarray>
  * collection  (collection) <U7 'orig' 'fpzip20' ... 'zfp-p20' 'zfp-p22'
Data variables:
    Q           (collection, time, lev, lat, lon) float32 dask.array<chunksize=(1, 100, 30, 192, 288), meta=np.ndarray>
Attributes:
    Conventions:      CF-1.0
    source:           CAM
    case:             b.e11.BRCP85C5CNBDRD.f09_g16.031
    title:            UNSET
    logname:          mickelso
    host:             ys1023
    Version:          $Name$
    revision_Id:      $Id$
    initial_file:     b.e11.B20TRC5CNBDRD.f09_g16.031.cam.i.2006-01-01-00000.nc
    topography_file:  /glade/p/cesmdata/cseg/inputdata/atm/cam/topo/USGS-gtop...
    history:          Wed Nov 11 17:21:59 2020: ncks -L 5 Q.monthly.200601-20...
    NCO:              netCDF Operators version 4.7.9 (Homepage = http://nco.s...
    cell_measures:    area: cell_area
    data_type:        cam-fv
[22]:

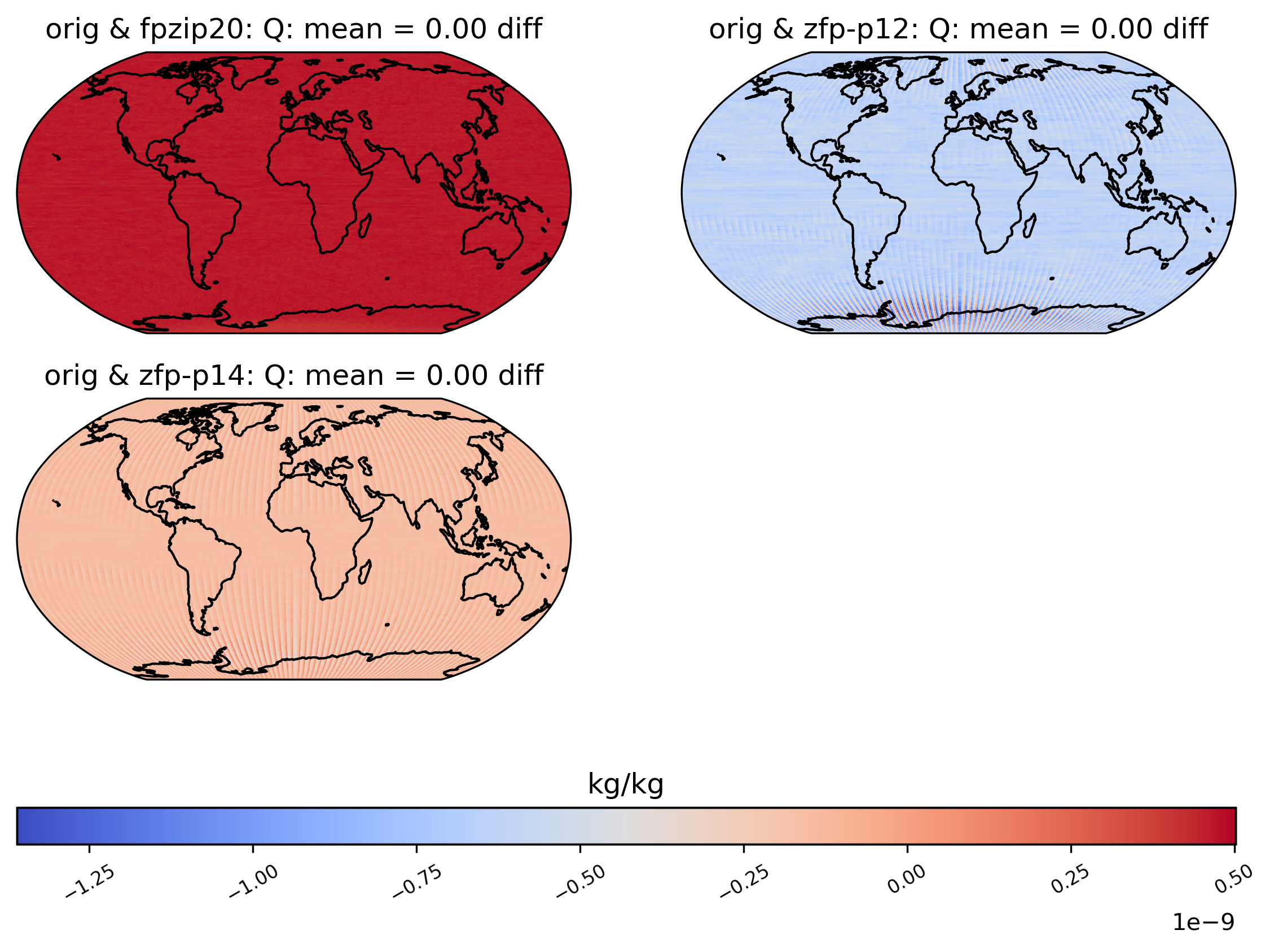

# diff between mean Q values across the entire timeseries
ldcpy.plot(
    col_q, "Q", sets=["orig", "fpzip20", "zfp-p12", "zfp-p14"], calc="mean", calc_type="diff", lev=0
)
../_images/notebooks_CompressionSamples_29_0.png
[23]:

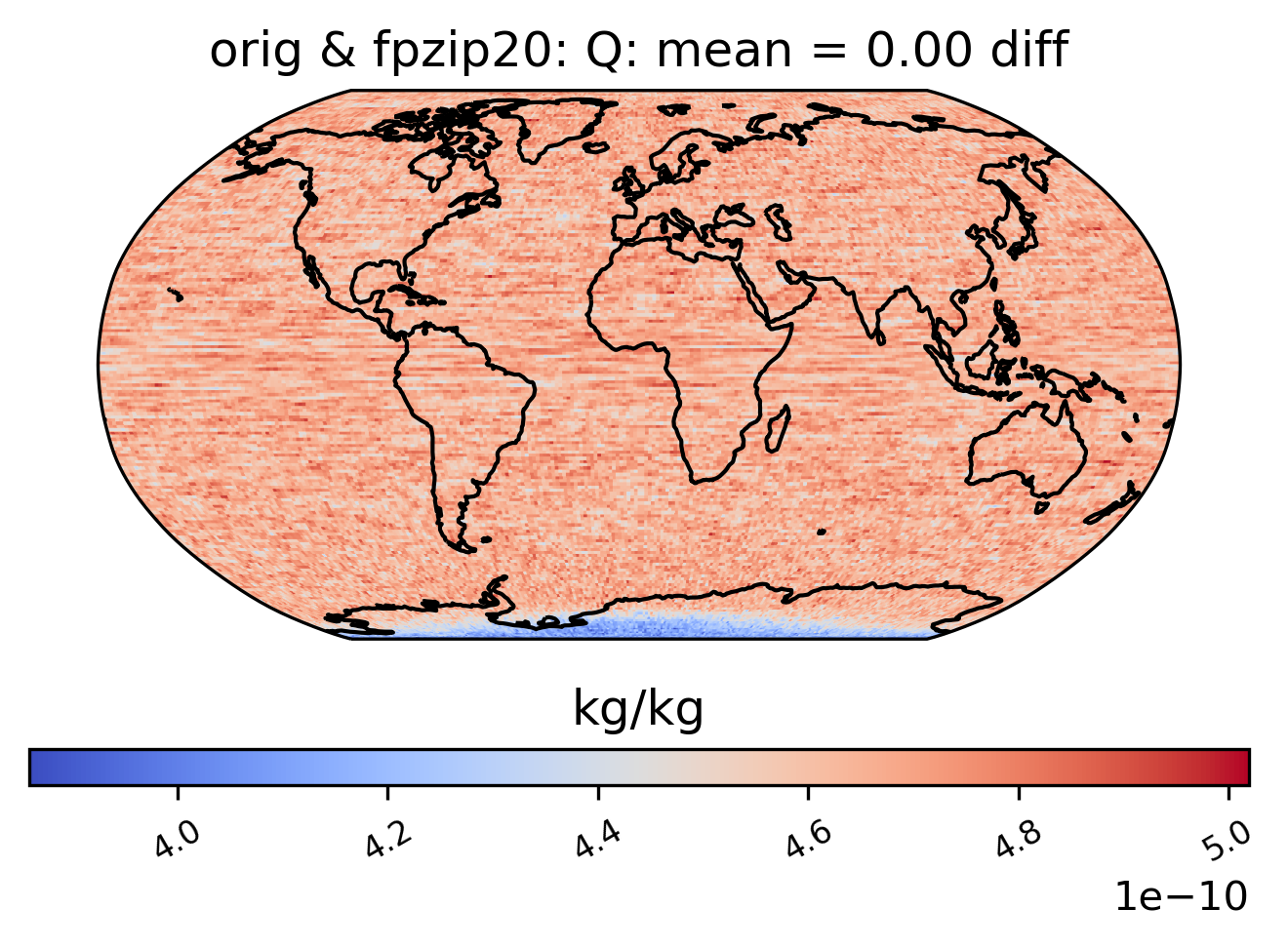

# diff between mean Q values across the entire timeseries - look at just one from above
ldcpy.plot(col_q, "Q", sets=["orig", "fpzip20"], calc="mean", calc_type="diff", lev=0)
../_images/notebooks_CompressionSamples_30_0.png
[24]:

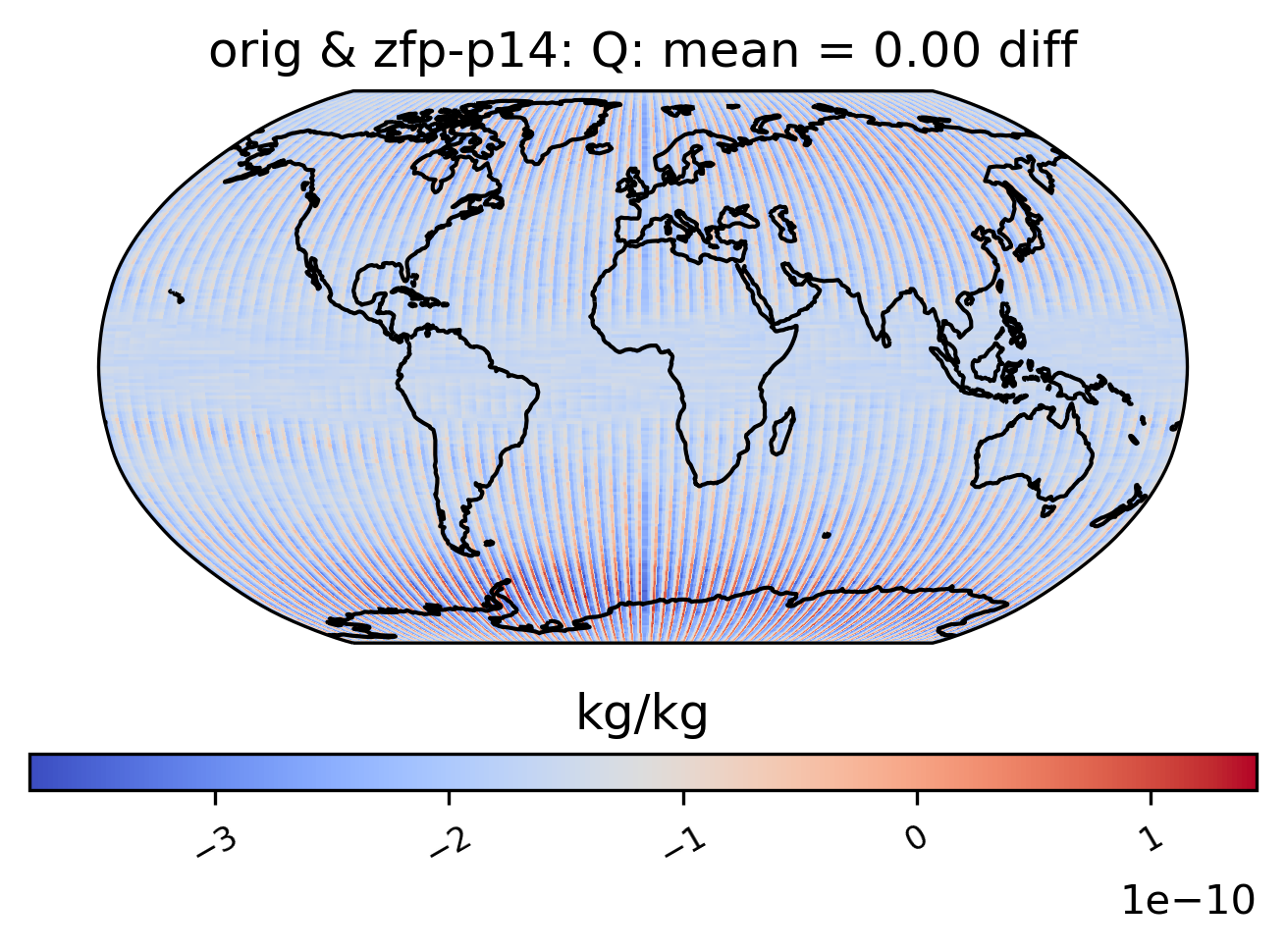

# diff between mean Q values across the entire timeseries - look at just one from above
ldcpy.plot(col_q, "Q", sets=["orig", "zfp-p14"], calc="mean", calc_type="diff", lev=0)
../_images/notebooks_CompressionSamples_31_0.png
[25]:

# Note: since q is 3D, need to select a level and a time slice
ldcpy.compare_stats(col_q.isel(time=0, lev=0), "Q", ["orig", "fpzip20", "zfp-p12", "zfp-p14"])
Comparison:
orig fpzip20 zfp-p12 zfp-p14
mean 2.2156e-06 2.2151e-06 2.2162e-06 2.2158e-06
variance 9.5578e-15 9.5584e-15 9.5602e-15 9.5581e-15
standard deviation 9.7765e-08 9.7768e-08 9.7777e-08 9.7766e-08
min value 3.2387e-06 3.2382e-06 3.241e-06 3.2382e-06
max value 2.1375e-06 2.1374e-06 2.1383e-06 2.1374e-06
probability positive 1 1 1 1
number of zeros 0 0 0 0

Difference calcs:
fpzip20 zfp-p12 zfp-p14
max abs diff 9.311e-10 6.7889e-09 2.0948e-09
min abs diff 0 0 0
mean abs diff 4.6242e-10 1.1428e-09 3.2624e-10
mean squared diff 2.1383e-19 3.4989e-19 2.4897e-20
root mean squared diff 5.351e-10 1.4284e-09 4.1195e-10
normalized root mean squared diff 0.0004859 0.001297 0.00037408
normalized max pointwise error 0.00084549 0.0057336 0.0015572
pearson correlation coefficient 1 0.99991 0.99999
ks p-value 6.4126e-18 1.1829e-51 6.837e-07
spatial relative error(% > 0.0001) 75.96 88.196 58.992
max spatial relative error 0.00043437 0.0026751 0.00074946
Data SSIM 0.80848 0.62469 0.84677
[26]:

# Disconnect when finished
cluster.close()
client.close()

distributed.deploy.adaptive_core - ERROR - Adaptive stopping due to error RPC Closed: while trying to call remote method 'adaptive_target'

[ ]:
